HZB-12A New Arrival Mini Ice Maker Machine For Home
Voltage:220-240V/50Hz, 230V/60Hz, 115V/60Hz, 100V/60Hz
Refrigerant: R600a
Warranty: 1 year
Unit dimension: 222x313x320mm...
Control means:machanical control
Defrost Type:Manual Defrost
Usage:Household Appliance
ARE YOU A DIRECT MANUFACTURER OR TRADING COMPANY?
Hicon has 8 advanced household air-conditioner production lines, 9 water cooler assembly lines, 2 refrigerator production lines and the world first-class enthalpy testing laboratories. We produce and sell all by ourselves.
Voltage:220-240V/50Hz, 230V/60Hz, 115V/60Hz, 100V/60Hz
Refrigerant: R600a
Warranty: 1 year
Unit dimension: 222x313x320mm
Evaporator material: Cooper
Performance
|
Ice Capacity（Kg/24Hr,25℃ Air) |
12 |
12 |
|
Rated Current A |
0.7 |
1.7 |
|
Water Tank Volume L |
2 |
2 |
|
Ice Basket Volume Kg |
0.7 |
0.7 |
|
Cycle Time |
6-13min |
6-13min |
|
Ice Cubes Qty Per Cycle |
9 |
9 |
|

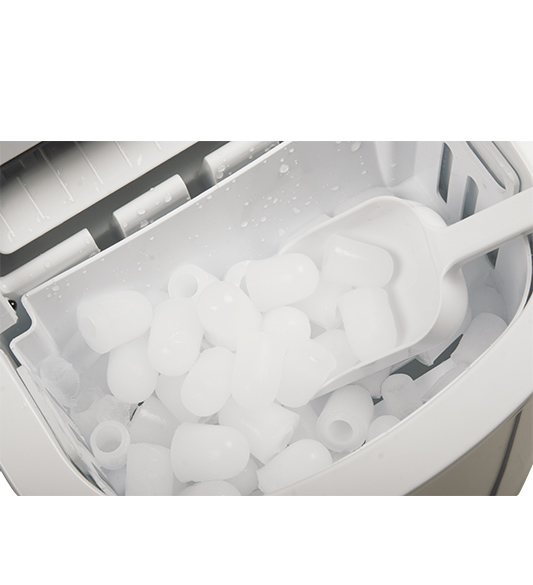

Ice Cube Shape |
Bullet |
Bullet |
|
Weight Of One Ice Cube |
7-9g |
7-9g |
|
Water Supply |
Manually |
Manually |
|
Clean Method |
Manually |
Manually |
UNPACKING YOUR ICE MAKER
1. Remove the exterior and interior packaging. Check if ice basket and ice scoop inside. If any parts are missing, please contact our customer service.
2. Remove the tapes for fixing ice shovel, ice basket & ice scoop. Clean the tank & ice basket.
3. Put the ice maker on a level & flat counter top without direct sunlight and other sources of heat (i.e.: stove, furnace, radiator). Maker sure that there is at least 4 inches gap between the back & LH/RH sides with the wall.
4. Allow one hour for the refrigerant fluid to settle before plugging the ice maker in.
5. The appliance must be positioned so that the plug is accessible.
With new image and advanced management, Hicon is offering quality products and excellent service to the world!
