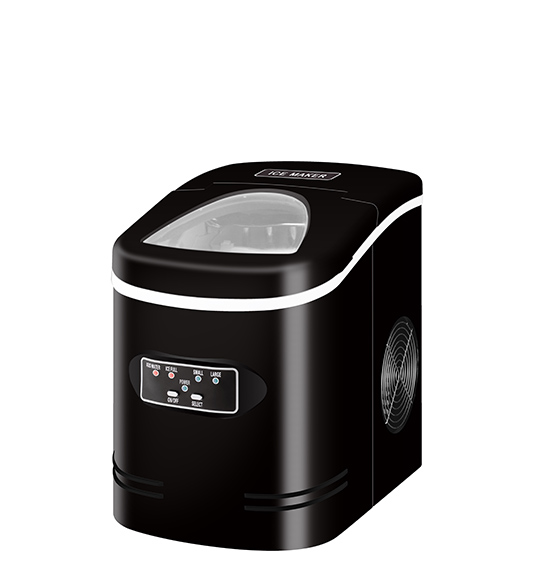

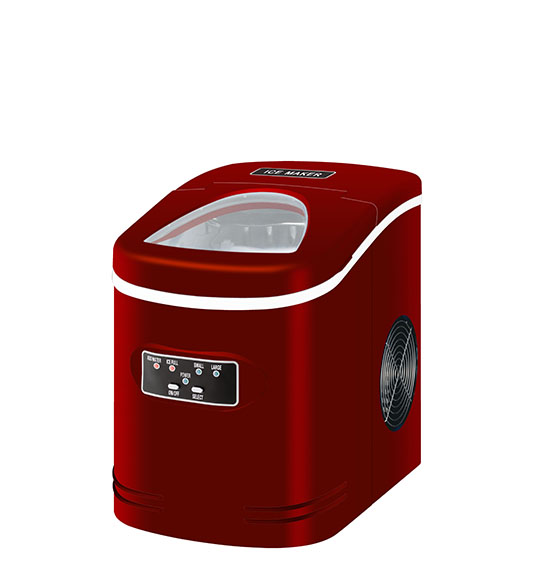

Popular Home Front Control Panel Large Window Ice Maker HZB-12A Factory

Popular Home Front Control Panel Large Window Ice Maker HZB-12A

Popular Home Front Control Panel Large Window Ice Maker HZB-12A

Popular Home Front Control Panel Large Window Ice Maker HZB-12A

Voltage:220-240V/50Hz, 230V/60Hz, 115V/60Hz, 100V/60Hz

Refrigerant: R600a

Warranty: 1 year

Unit dimension: 222x313x320mm...

Control means:machanical control

Certification:CB, CE, EMC, GS, RoHS, LVD

Usage:Household Appliance

HOW LONG CAN I GET THE FEEDBACKS AFTER WE SENT THE INQUIRY?
We will reply you within 12 hours in working day.

0

Popular Home Front Control Panel Large Window Ice Maker HZB-12A Details

Voltage:220-240V/50Hz, 230V/60Hz, 115V/60Hz, 100V/60Hz

Refrigerant: R600a

Warranty: 1 year

Unit dimension: 222x313x320mm

Evaporator material: Cooper

Performance

Ice Capacity(Kg/24Hr,25℃ Air)

12

12

Rated Current  A

0.7

1.7

Water Tank Volume  L

2

2

Ice Basket Volume  Kg

0.7

0.7

Cycle Time

6-13min

6-13min

Ice Cubes Qty Per Cycle

9

9

Ice Cube Shape

Bullet

Bullet

Weight Of One Ice Cube

7-9g

7-9g

Water Supply

Manually

Manually

Clean Method

Manually

Manually



UNPACKING YOUR ICE MAKER

1. Remove the exterior and interior packaging. Check if ice basket and ice scoop inside. If any parts are missing, please contact our customer service.

2. Remove the tapes for fixing ice shovel, ice basket & ice scoop. Clean the tank & ice basket.

3. Put the ice maker on a level & flat counter top without direct sunlight and other sources of heat (i.e.: stove, furnace, radiator). Maker sure that there is at least 4 inches gap between the back & LH/RH sides with the wall.

4. Allow one hour for the refrigerant fluid to settle before plugging the ice maker in.

5. The appliance must be positioned so that the plug is accessible.
